Any two connections
Mix and match ends across Ditch Witch, Vermeer, API and more — whatever the job needs on each side.
Down Hole Tools for Europe's HDD Industry
Premium drill pipe for the world's leading HDD rigs
Drill pipe, backreamers and custom subs engineered for a precise fit on Ditch Witch, Vermeer and TT Technologies rigs — and the rest of the job from the same supplier: downhole tooling, drilling fluids and locating systems.
Dual-rod rock drilling
Hunting RocKnife for hard rock
The dual-rod rock housing, rethought: no grease, no seals and no lid bolts. One housing family for the Ditch Witch AT line and Vermeer DR rigs.
ProBore series
Drilling fluids for every ground
Polymer drilling fluids and additives for HDD — for everything from sticky clay to sand, gravel and rock.
Walk-over locating
Mag X locating systems
Walk-over locators from Underground Magnetics, with Echo and Armor VTX sondes.
Compact · Flycutter · Kodiak · Shredder · Badger
Backreamers from soft soil to solid rock
Our backreamer range runs from soft soils through solid rock. Choose a reamer type to see the full specifications.
5
Product ranges
300+
Drill-pipe specifications
IEU
Forged & inertia-welded
15k
Max torque (ft·lbs)
Built to standard
S135 grade steel
IEU forged & inertia-welded
Documented torque & bend radius
NC50 / IF / FH / Reg threads
Material certificates on request
Our products

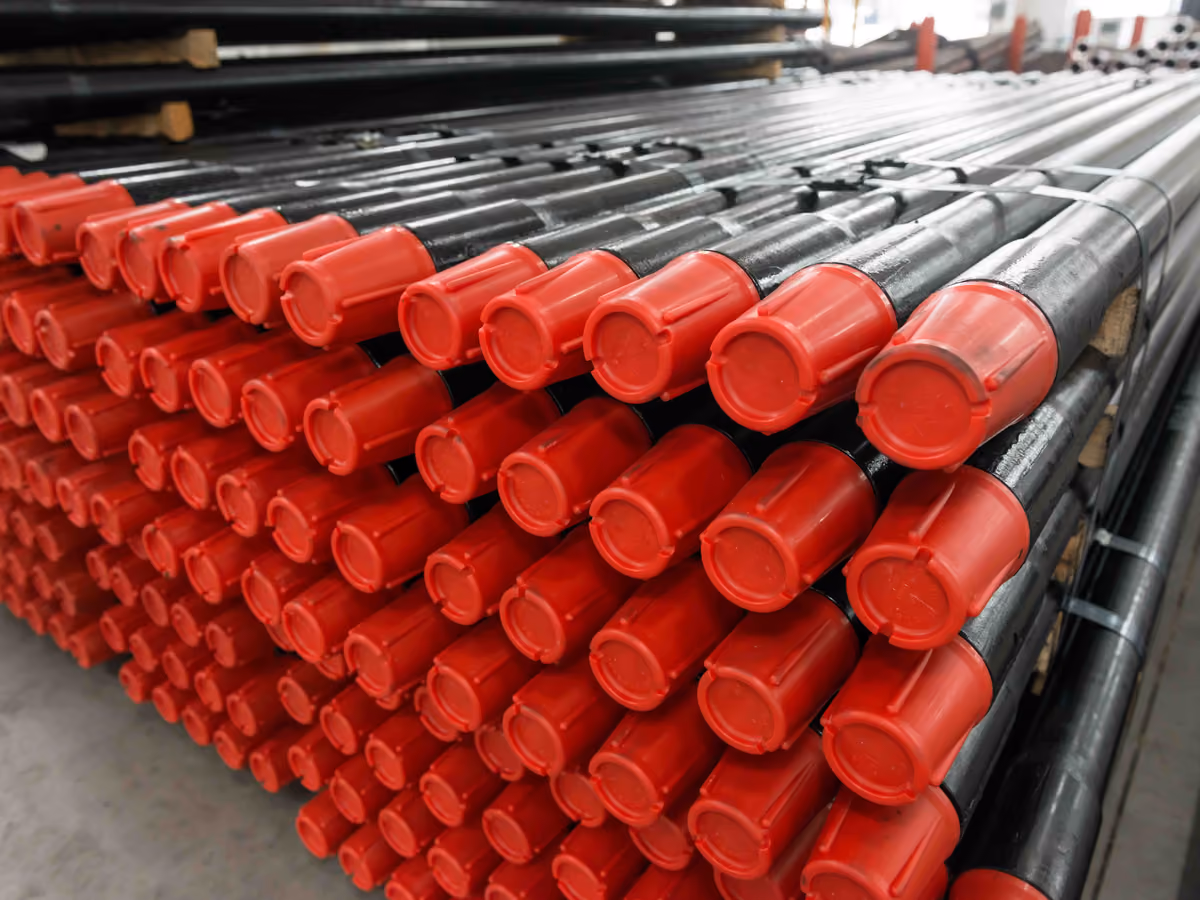

Drill pipe for every rig
Find your pipe by machine brand — Vermeer, TT Technologies or Ditch Witch — or go straight to our maxi pipes and Hunting pipes. Each page has the full specifications.
VM
Navigator® Series
Vermeer
IEU-forged drill pipe for the Vermeer Navigator range — from the compact D7x11 to the high-torque D100x120 maxi rig.
View Vermeer pipe→
TT
Grundodrill Series
TT Technologies
IEU-forged drill pipe for TT Technologies Grundodrill machines, covering the 4X through the 18N–28N range.
View TT Technologies pipe→
DW
Power Pipe® · JT & AT
Ditch Witch
Drill pipe for the full Ditch Witch line-up — JT Power Pipe for the JT5 to JT100, plus dual-rod AT pipe for All Terrain rigs.
View Ditch Witch pipe→
MX
IEU forged · friction-welded
Maxi Pipes
Maxi HDD drill rod for large-bore and maxi rigs — one-piece IEU-forged and friction-welded, S135 grade, with NC50, IF and FH connections.
View Maxi pipe→
HU
HIWS1 · HXT · Advantage Series
Hunting pipes
One-piece forged drill pipe from Hunting — HIWS1 and HXT — plus the welded Advantage Series.
View Hunting pipe→
Rock housing
Hunting RocKnife — the AT sonde housing, rethought
A dual-rod sonde housing with no grease, no seals and no lid bolts. Mud-lube bearings, a 6-tab LockingLid and room for Subsite, DCI and Underground Magnetics beacons — rebuilt at the rig with a bearing swap.
AT
RK30 – RK100
Ditch Witch All Terrain
RocKnife housings for the AT30, AT32, AT40, AT60 and AT100 — one housing family and one rebuild routine for the whole AT line.
View AT housings→
DR
RK2330 · RK4055
Vermeer DR
Complete housings for the D23x30DR and D40x55DR, or an extension kit that takes an RK30 or RK60 onto the Vermeer rig.
View DR housings→
RK
Bearings · lids · wear parts
Rebuild parts and spares
Bearing sets, mandrels, transmitter covers and wear pads for every RK model, listed by part number.
View rebuild parts→
Backreamers
Reaming tools for every ground condition
Placeholder text — our backreamer range runs from soft soils through solid rock. Choose a reamer type to see the full specifications.
CP
Fluted reamer
Compact
Placeholder — compact fluted backreamer for soft to medium soils and smaller bores.
View Compact reamer→
FC
Flycutter / barrel
Flycutter
Placeholder — flycutter barrel reamer for mixed and cohesive soils.
View Flycutter reamer→
KD
Rock reamer
Kodiak
Placeholder — heavy-duty rock reamer for hard ground and solid rock.
View Kodiak reamer→
SH
Mixed-soil reamer
Shredder
Placeholder — aggressive shredding reamer for clay and compacted soil.
View Shredder reamer→
BD
All-round reamer
Badger
Placeholder — versatile all-round reamer for a wide range of ground conditions.
View Badger reamer→
More tooling
Everything else on the drill string
Pulling heads, swivels, housings, bits and hole openers — the tools around the pipe and the reamer. Pick a category to see sizes and part numbers.
Tricone · PDC

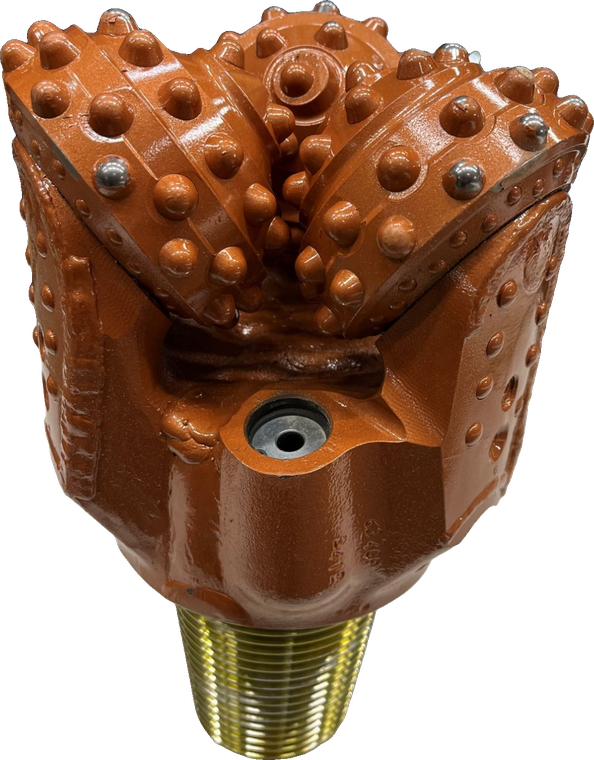

TriCone bit
Tricone rock bits from 5½″ to 6¾″ in IADC 217 to 837, and a 7⅞″ PDC bit — all with API Reg pin connections.
View drill bits→
Rock · 10″ – 14″
Hole openers
Roller-cone hole openers with sealed-bearing TCI cutters, for opening the pilot bore in rock — 10″, 12″ and 14″.
View hole openers→
Pulling swivels

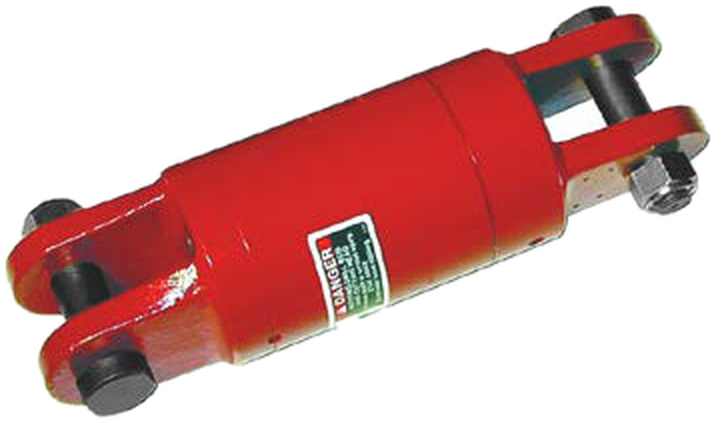

Swivels
DCD Design pullback swivels — DUB-Lite and DUB-Swivel with a clevis at each end, 2.3 to 73 tonnes.
View swivels→
Pipe O.D. 25 – 355 mm
Pulling heads
Clamp-in pulling heads with or without cap, and welding heads — for pipe from 25 to 355 mm.
View pulling heads→
Sonde housings

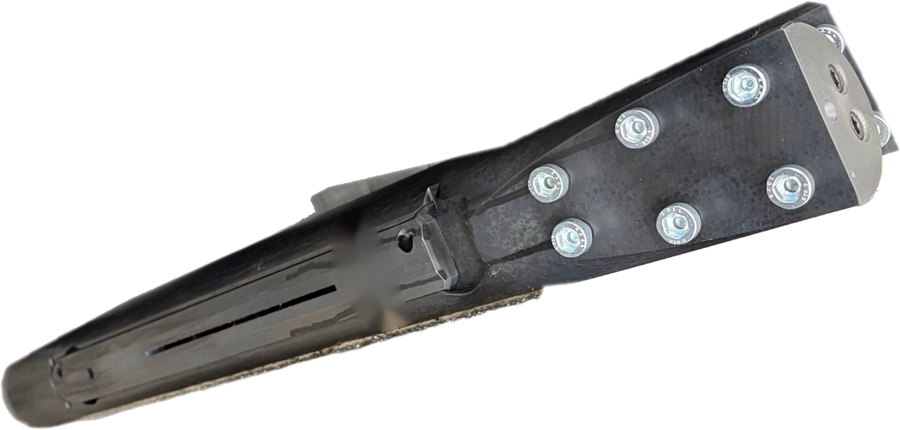

Housings
Transmitter housings that protect the sonde and hold it straight behind the bit.
View housings→
Drilling fluids
A fluid for every ground
Polymer drilling fluids and additives from ProAction Fluids, from sticky clay to sand, gravel and rock. Six products that work together — start from one base fluid and add what the ground calls for.
Synthetic polymer HDD fluid
TurboBore
A one-product drilling fluid: no recipe and no other additives needed. Best suited to sand and rocky soil.
View drilling fluids→
Soil stabiliser and viscosifier
ProDrill
Multi-polymer blend that builds viscosity and binds clay and other low-density solids, so the cuttings leave the bore cleanly. The base of the ProBore series.
View drilling fluids→
Water-based, hydrocarbon-free
ProDrill ECO
The water-based version of ProDrill, with no oil or hydrocarbons — for jobs where oil-based carrier fluids are not allowed.
View drilling fluids→
Drilling detergent and water conditioner
ProDyne
Non-foaming detergent that softens hard water and keeps sticky clay from clinging to the bit, the rods and the tooling.
View drilling fluids→
Clay control additive
ClayLock
Clay inhibitor that stops reactive clays from swelling and grabbing the pipe and the tooling.
View drilling fluids→
Liquid viscosifier, lubricant and filtration control
GeoSweep LQ
Liquid multi-polymer blend for dense, permeable ground from sand to rock: disperses quickly, carries coarse cuttings out and seals the bore wall.
View drilling fluids→
Custom subs
Can't buy the connection you need? Build it.
When it isn't on the shelf, combine any two ends into one purpose-built sub — set the overall length and send it to us for a fast quote.
Your exact length
Set the overall length in millimetres and watch a live drawing update as you build.
Quoted fast
S135-grade steel and a guaranteed thread fit, with same-day production on many builds.
Open the sub builder
Not sure which end connection you have? We'll help you identify it.
Why DHT Europe
Built to outlast the rig it runs in
Certified steel
Every drill pipe is produced from certified alloy steel with documented tensile, torque and bend-radius ratings — the data you need is published for every part number.
Guaranteed fit
IEU-forged and inertia-welded tool joints are machined to the exact thread connection of each Ditch Witch, Vermeer and TT Technologies model — a true drop-in replacement.
Fast delivery
We keep a broad inventory of drill pipe, backreamers and tooling, so standard orders ship fast — with express freight available when the job can't wait.
Tell us your machine — we'll match the pipe.
Contact us for a quote, technical advice or stock and lead-time information.
